Electroplating Matt Black Ceiling Light Cable Suspension Systems YW86344

Yingwei Lighting Accessory Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Electroplating Matt Black Ceiling Light Cable Suspension Systems YW86344

Brand Name : YW

Model Number : YW-86344

Certification : CE RoHS

Place of Origin : GUANGDONG, CHINA

MOQ : 500 PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 200,000 PCS a Month

Delivery Time : 8 - 15 work days

Packaging Details : 2pcs / PP bag, 35*25*18cm Carton

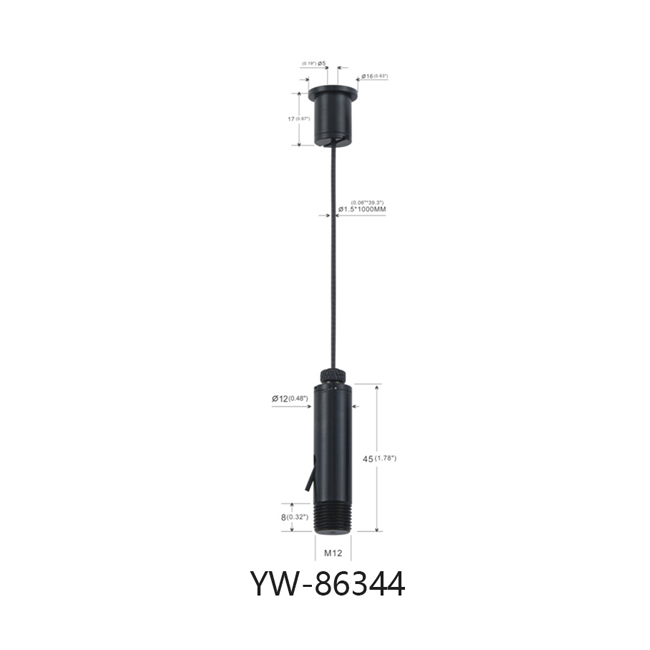

Item Name : YW-86344

Material : Brass

Ceiling Size : 12*12mm

Wire Diameter : 1.0mm

Gripper Size : 12*45mm

Wire Length : 1000mm, customized

MOQ : 500pcs

Lead Time : 8-15 Business days

Sample : Free sample available for existing dimension

Contact Now

Electroplating Matt Black Ceiling Light Cable Suspension Systems YW86344

Description



Grippers

Compact-designed grippers allow swift installation and instant adjustment without damaging the wire.

We have many different gripper models to choose from, depending on your area of usage and weight capacities.



Wires

Stainless steel and zinc-plated wires are available in various dimensions and lengths.

Wires with loops or nipples can be obtained after consultation with our technicians.



Attachments

Attachments are used to fix the wire to ceilings, walls or floors.

Ensure that you use suitable screws and dowels for the materials when installing.

Specification:



 1.Main Wire Diameter

 ∅1.5mm(0.06”)
 2.Construction  1*7,7X7,1*19,7*19 etc
 3.Material  Stainless steel / Copper
 4.MOQ  500pcs
 5.Length  1000mm, as the requirement
 6.Type  Single leg
 7.Surface treatment  Chrome, Nickel, Black, White, and Silver
 8.End parts of fittings  Eyelets terminals
 Screws
 Clips
 Hooks
 All kinds of grippers
 Ceiling attachment
 locking screws
 A large selection of end fittings, including eye bolts, links, springs,
 hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped eye,
 handles, etc
 9.Lead time  10-15 workdays if there were enough material in stock
 10.Sample

 Free sample available if all of the dimensions same as our existing one






What is the difference between 1x19, 7x7, and 7x19 configurations?​



* The 1x19 cable is slightly stronger than the other cables but is the least flexible. It is also the nicest looking cable due to the fewer strands of wire that make it up.
* The 7x7 cable is semi-flexible, has a lesser breaking load than compared to the 1x19, but greater than 7x19.
* The 7x19 cable is the most flexible, which allows it to loop back on itself without kinking. It has the lowest breaking load of 20kg.
* If you are using the wire for balustrading; in particular in conjunction with fittings that require the use of a hydraulic swage, either of the 3 wires wire will be fine; but if you are using fittings that need the cable to wrap around a thimble, then the more flexible 7x7 or 7x19 cable is a much easier option for this purpose.





Advantage



  Suspension kit for slim frame LED edge light panels.

Easy installation that does not require a professional.

Secure lock that screws into the ceiling while the other screws into the premade holes on the side of the edge light panel.

Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important.





Application



Lighting, Machinery, Medical, Security, Sporting Goods, Toys, Window, Lawn & garden. When designing a cable assembly, a number of factors need to be considered such as workload, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter, the greater the workload capacity and the less flexible it will be.



Our Company



Yingwei specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray tests and tensile tests at the factory to ensure the quality and safety of the products.





FAQ



1. Can I have a sample order for lighting hardware fittings?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.



2. How can I pay?
A: We accept T/T or Wire transfer, PayPal, Western Union.


3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.



4.If received the wrong/damaged/bad quality products?
A: Please contact us immediately, we will reply in 1 working day and provide a solution in 3 working days.

optional.
